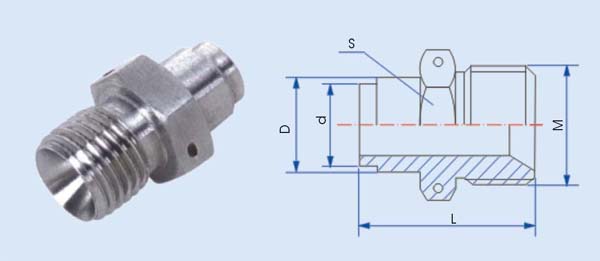

焊接接管咀SG1398-89材质：1Cr18Ni9Ti
|
DN |
M |
D |
d |
L |
S |
|
4 6 |
12×1.25 14×1.5 |
10 12 |
8 10 |
28 29 |
14 17 |
|
8 10 |
16×1.5 20×1.5 |
14 16 |
12 14 |
29 29 |
19 22 |
|
12 14 |
22×1.5 24×1.5 |
18 20 |
16 18 |
29 31 |
24 27 |
|
16 18 |
27×1.5 30×1.5 |
22 24 |
20 22 |
33 35 |
30 32 |
|
20 20 |
30×1.5 30×1.5 |
26 26 |
24 24 |
35 35 |
32 32 |
