0～12L/s减压阀参数

名称	减压阀
型号	JYF25-12L/s-0
进口通径	DN5
出口通径	DN12
进口压力	7～25MPa
出口压力	0～5MPa(可调)
介质	空气、惰性气体
温度	-40～+67℃

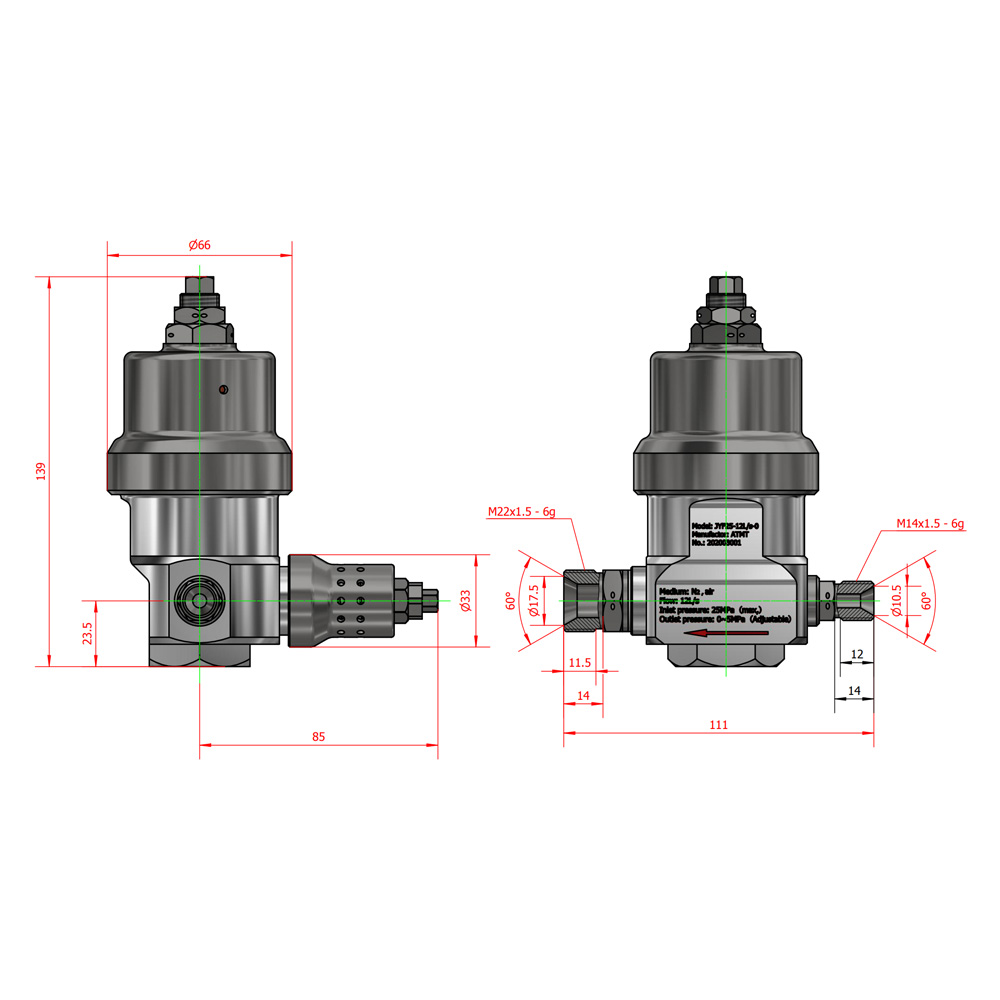

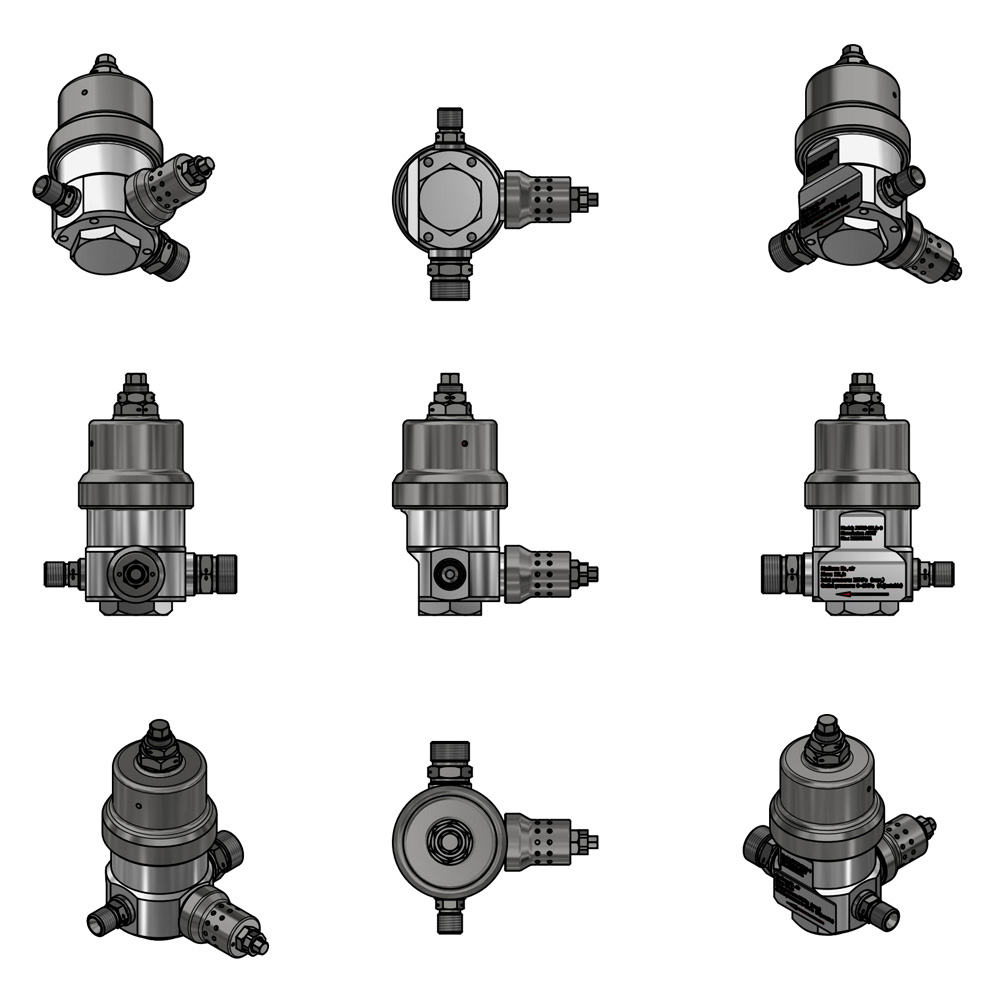

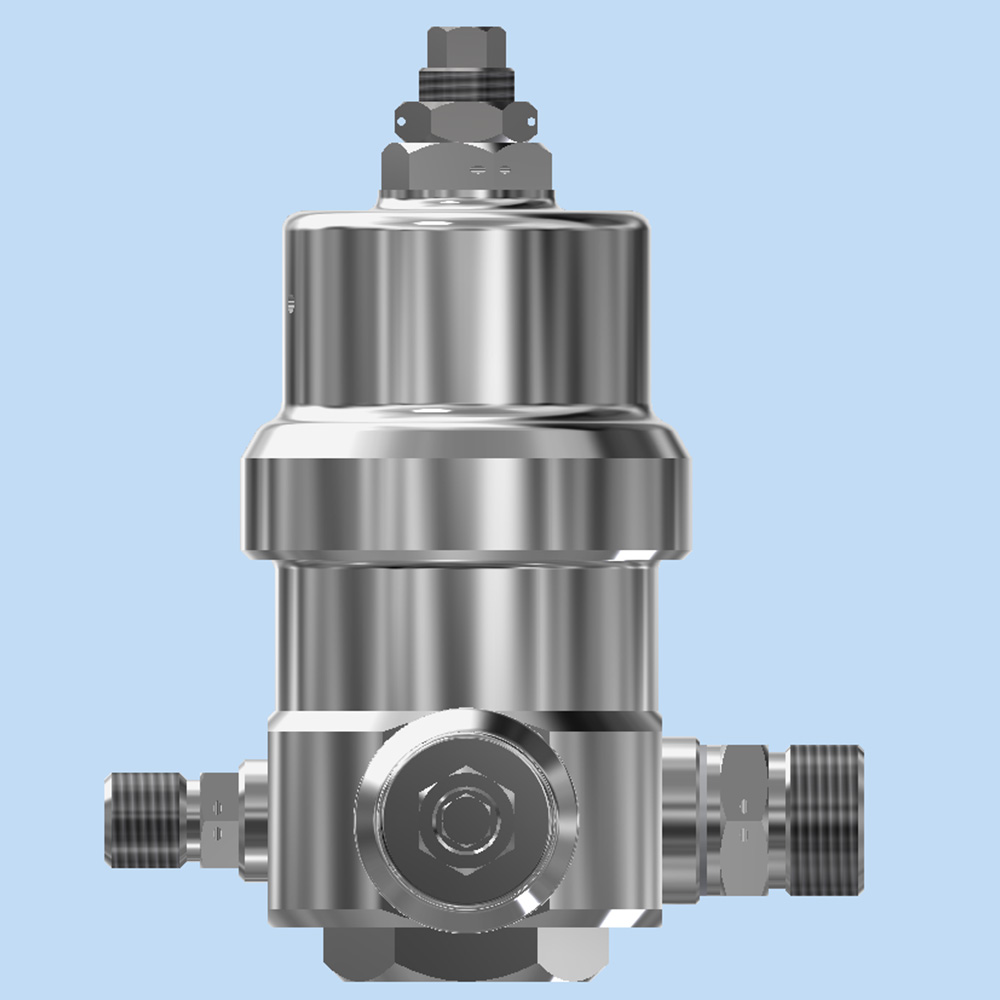

0～12L/s Pressure reducer

Name	Pressure reducer
Model	JYF25-12L/s-0
Inlet	DN5
Outlet	DN12
Inlet Pressure	7～25MPa
Outlet Pressure	0～5MPa (Adjustable)
Medium	Air, inert gas
Temperature	-40～+67℃

介绍：

该阀是膜片减压阀，适用于自动控制领域，出口压力响应时间快。适用于管路系统中有多种压力。进口设有50μ过滤网。
Introduction:

The valve is diaphragm pressure reducer, suitable for automatic control system, outlet pressure response time is fast. It is suitable for many medium pressures in the piping system. The inlet is provided with a 50μ filter.
