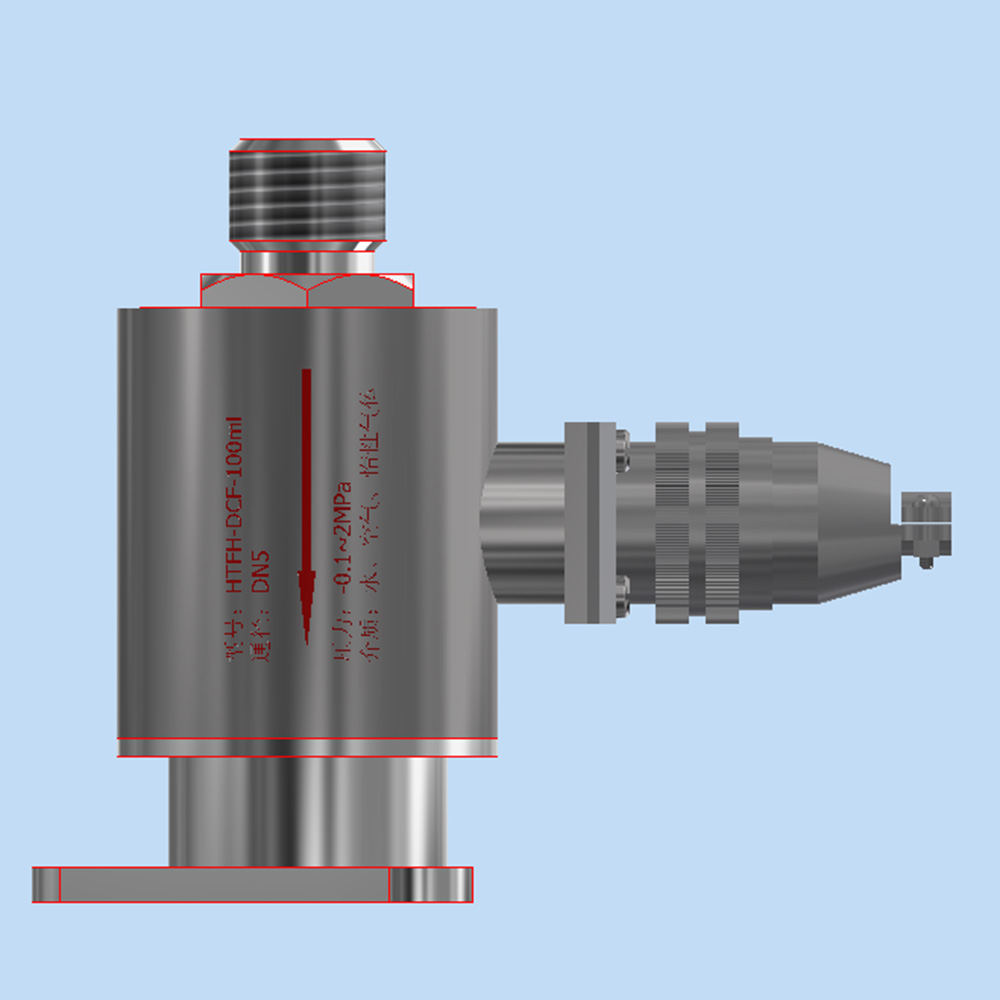

100ml电磁阀参数
名称
|
电磁阀
|
型号
|
HTFH-DCF-100ml
|
通径
|
DN5
|
PN压力
|
-0.1~+2MPa
|
流量
|
≥100ml/s
|
电压
|
21~30Vdc
|
电流
|
0.4~0.6A
|
介质
|
H2O、惰性气体、air
|
温度
|
-40~+80℃
|
100ml Solenoid valve
Name
|
Solenoid valve
|
Model
|
HTFH-DCF-100ml
|
Size
|
DN5
|
PN Pressure
|
-0.1~+2MPa
|
Flow
|
≥100ml/s
|
Voltage
|
21~30Vdc
|
Current
|
0.4~0.6A
|
Medium
|
H2O,inert gas
|
Temperature
|
-40~+80℃
|
介绍:
该阀是直通式电磁阀,适用于自动控制领域,响应时间快。在最大压力下,开启时间≤30ms,关闭时间≤20ms。阀进口有50μ过滤网,三角法兰连接。
Introduction:
The valve is direct way solenoid valve, suitable for
automatic control, response time is fast. At maximum

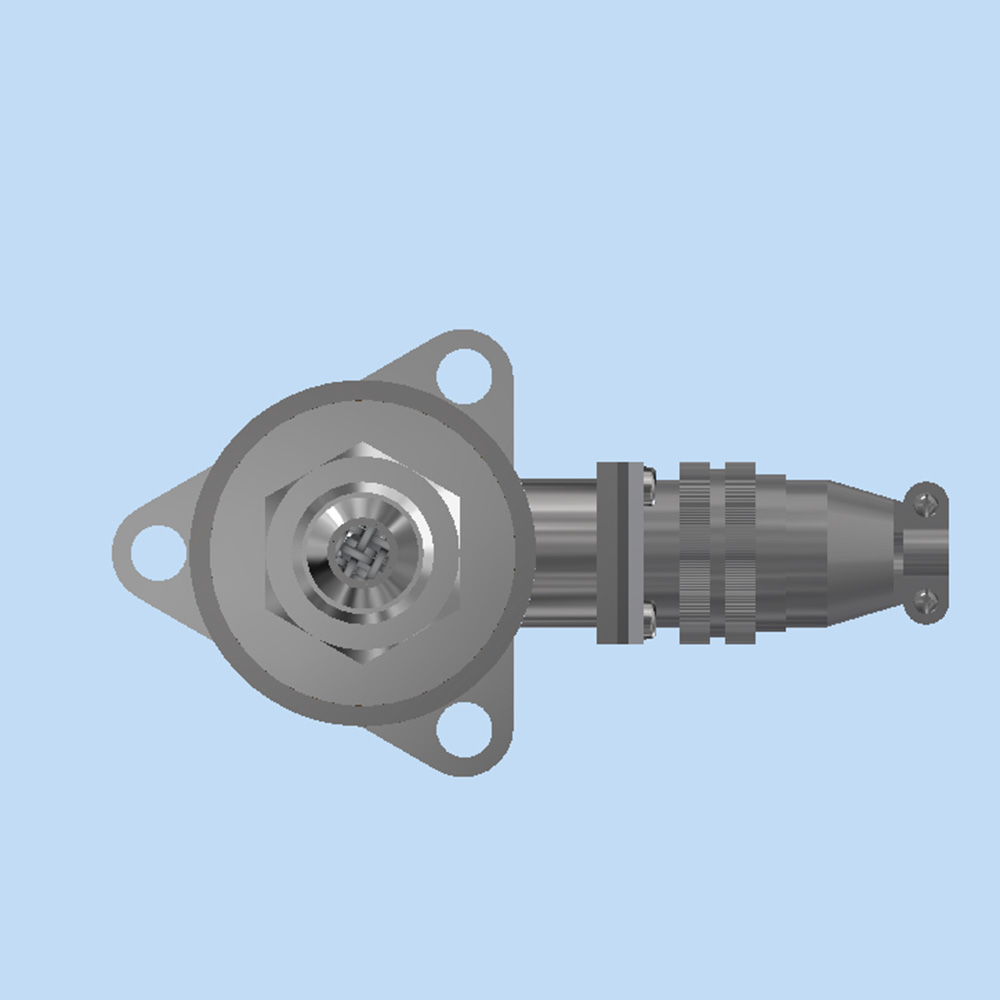

pressure, pull up time ≤30ms, release time ≤20ms. The inlet is provided with a 50μ filter. Triangular
flange connection.
