DN40A电磁阀参数
名称
|
电磁阀
|
型号
|
HTFH-DCF-DN40A
|
通径
|
DN40
|
PN压力
|
5MPa
|
流量
|
≥5L/s
|
电压
|
21~30Vdc
|
电流
|
0.6~0.9A
|
介质
|
H2O、惰性气体、air
|
温度
|
-40~+80℃
|
DN40A Solenoid valve
Name
|
Solenoid valve
|
Model
|
HTFH-DCF-DN40A
|
Size
|
DN40
|
PN Pressure
|
5MPa
|
Flow
|
≥5L/s
|
Voltage
|
21~30Vdc
|
Current
|
0.6~0.9A
|
Medium
|
H2O, inert gas
|
Temperature
|
-40~+80℃
|
介绍:

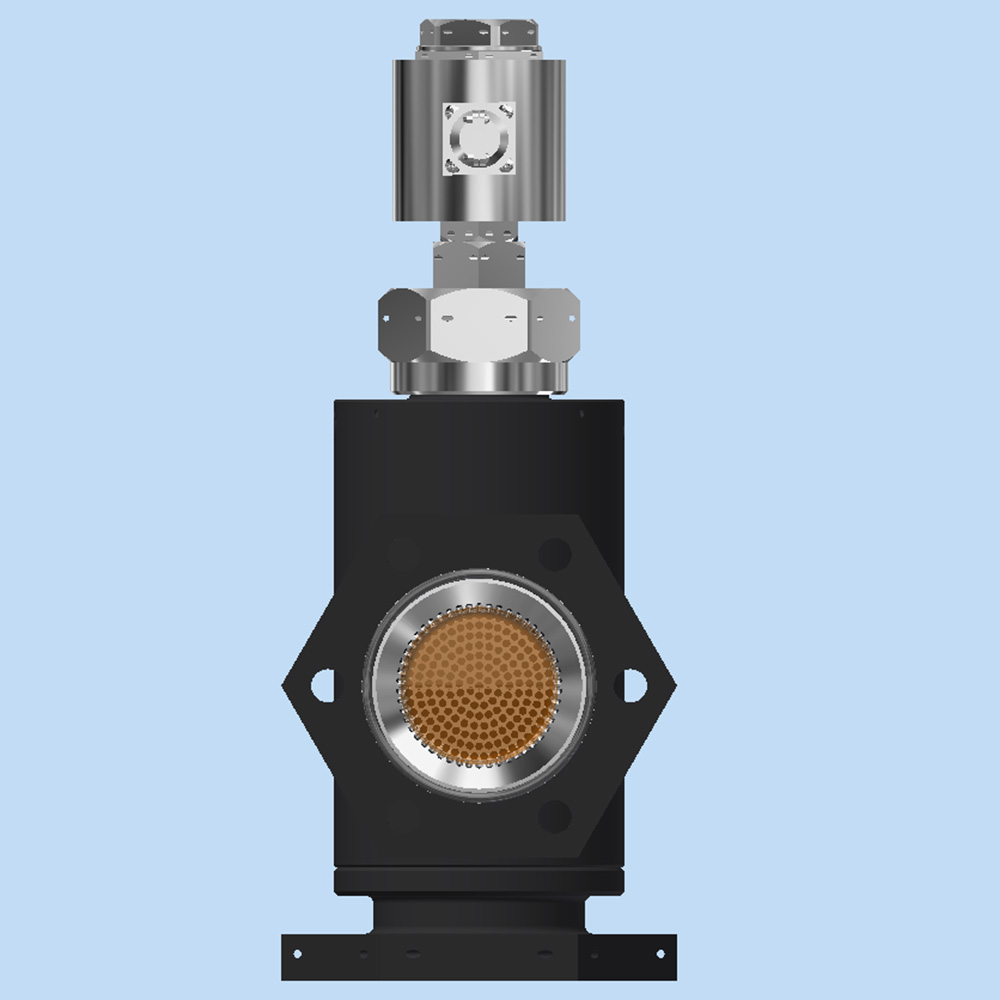

该阀是先导式直角电磁阀,适用于自动控制领域,响应时间快。在最大压力下,开启时间≤100ms,关闭时间≤80ms。阀进口有50μ过滤网,六角法兰连接。
Introduction:
The valve is pilot type
right angle solenoid valve, suitable for automatic
control, response time is fast. At maximum
pressure, pull up time ≤100ms, release time ≤80ms. The inlet is provided with a 50μ filter. Hexagonal flange
connection.
